| Parameter |
Data |
| Pressure Range |
-0.1...0~0.01...100MPa |
| Pressure type |
gauge (G), absolute (A), sealed gauge (S) |
| Overpressure |
150%FS |
| Burst pressure |
250%FS |
| Electronic Wire |
2 Wires |
3 Wires |
| Output signal |
4~20mA |
0~5VDC |
1~5VDC |
0~10VDC |
0.5~4.5VDC |
0.5~4.5 V radio metric |
| Power Supply |
12 ~ 30VDC, typical value: 24VDC |
10~30 V DC |
10~30VDC |
12~30VDC |
5 V DC |
5 V DC±5% |
| Accuracy |
0.25%FS(typ.) 0.5%FS(max.) |
| (including: nonlinearity, repeatability, hysteresis, zero drift, full drift) |
| Long-term stability |
≤0.2%FS/year |
| Working Temp |
−25℃~85℃ |
| Storage Temp |
−40℃~125℃ |
| Temperature Compensation |
-10℃~80℃ (Standard) |
| Temp.coefficient of zero |
±0.1%FS/°C |
| Temp.coefficient of span |
±0.05%FS/°C |
| Insulating resistance |
100MΩ@250VDC |
| Medium compatible |
Water, gas and weakly corrosive fluids |
| Short circuit protected |
Yes |
| Reverse polarity protection |
Yes |
| Electronic connection |
Packard 3 Pin Connector; |

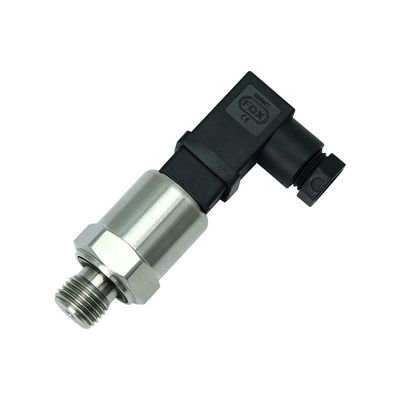

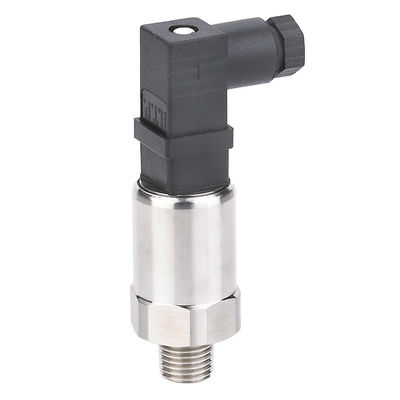

| Smaller Hirschman Terminal Box IP65; |

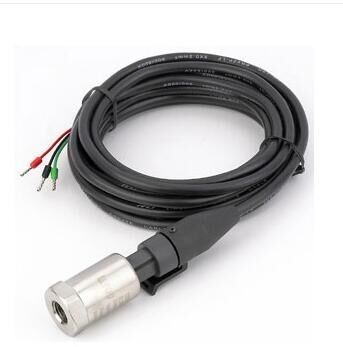

| Packard 3 Pin Connector with cable length by Customized. |
| Pressure interface |
M20x1.5, 1/8’’NPT male, 1/4’’NPT male/Female, G1/4’’ male/female, 7/16’’-20 UNF male/Female (by Customized) |
| Material of pressure membrane |
316L stainless steel |
| Response time(10%~90%) |
≤10msec(Rises to 90%FS) |
| Vibration Shock |
10g/5~2kHz,axes X/Y/Z/20g half sine 11ms |
| Water Proof |
IP65 |
| Certificate approving |
CE Certificate available. |
| EMC Standard |
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
| Weight |
Net weight is about 0.1KG, Full Packing weight is about 0.2KG (Included 2 Meters Cable) |
